  • #CT230 - Database Systems I
  • Previous Topic: Aggregate Clauses, Group By, & Having Clauses
  • Next Topic: Joins & Union Queries
  • Relevant Slides: ER-models.pdf
  • What are Data Models? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-19T00:00:00.000Z card-last-reviewed:: 2022-11-18T18:34:07.942Z card-last-score:: 1
    • Data models are concepts to describe the structure of a database.
    • They comprise:
      • High level or logical models;
      • Representational / Implementational data models;
      • Physical data models.
    • Data models allow for database abstraction.
  • What are ER Models? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.36 card-next-schedule:: 2022-11-19T00:00:00.000Z card-last-reviewed:: 2022-11-18T18:34:30.174Z card-last-score:: 1
    • Entity Relationship Models are a top-down approach to database design that provide a way to model the data that will be stored in a system. The models are then used to create tables in the relational model.
    • ER Models are used to identify:
      • [1] The important data to be stored in a database called entities.
      • [2] The relationships between the entities.
      • [3] The attributes of entities.
      • [4] The constraints of relationships & entities.
  • ER Model Notation

    • A number of different notations can be used to represent the same model.
      • Chen Notation.
      • IE Crow's Foot Notation.
      • UML.
      • Integrated Definition 1. Extended (IDEF1X).
    • The original (Chen) notation uses diamonds, rectangles, and elipses.
      • This is easier to hand-draw, so it is useful in an exam situation.
      • It is less implementation-oriented than other notations.
  • Some Definitions

    collapsed:: true
    • Entities

      collapsed:: true

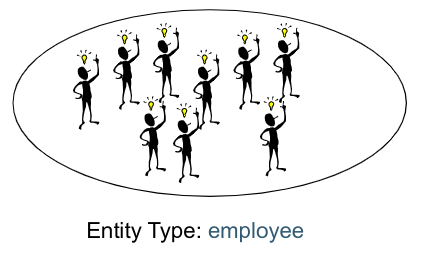

      • What is an entity type? #card card-last-interval:: 3.05 card-repeats:: 2 card-ease-factor:: 2.6 card-next-schedule:: 2022-11-17T21:24:38.127Z card-last-reviewed:: 2022-11-14T20:24:38.127Z card-last-score:: 5
        • An entity type is a collection of entity instances that share common properties or charcteristics.
        • It is a group of objects, with the same properties, which are identified as having an independent existence.
        • image.png
      • What is an entity instance? #card card-last-interval:: 11.34 card-repeats:: 3 card-ease-factor:: 2.56 card-next-schedule:: 2022-11-26T00:47:05.851Z card-last-reviewed:: 2022-11-14T16:47:05.851Z card-last-score:: 5
        • An entity instance or entity occurrence is a single, uniquely identifiable occurrence of an entity type (e.g., row in a table).
        • image.png
    • Relationships

      • What is a relationship type? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.6 card-next-schedule:: 2022-11-15T00:00:00.000Z card-last-reviewed:: 2022-11-14T16:30:24.202Z card-last-score:: 1 collapsed:: true
        • A relationship type is a set of meaningful relationships among entity types.
        • Chen's Notation: A diamond shape is used to name the relationship. 1 and M/N are used for the "1" and "many" sides respectively.
        • Crow's Foot Notation: The titular "crow's foot" is used as the representation of "many", and one line is used for the representation of "1".
          • image.png

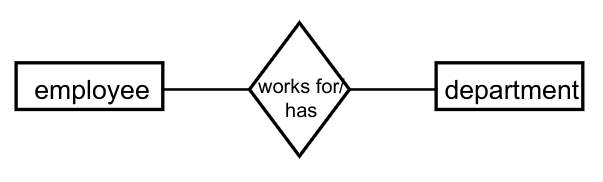

        • Example: employee "works for" department. department "has" employee.
        • image.png
      • What is a relationship instance? #card collapsed:: true card-last-interval:: 29.04 card-repeats:: 4 card-ease-factor:: 2.56 card-next-schedule:: 2022-12-10T11:35:42.874Z card-last-reviewed:: 2022-11-11T11:35:42.874Z card-last-score:: 3
        • A relationship instance or relationship occurrence is ==a uniquely identifiable association which includes one occurrence from each participating entity type==; reading left to right and right to left.
        • Example:
          • Left-to-Right: John Smith "works for" Research department.
          • Right-to-Left: Research department "has" John Smith.
      • What is the degree of a relationship type? #card card-last-interval:: 10.6 card-repeats:: 3 card-ease-factor:: 2.56 card-next-schedule:: 2022-11-22T01:30:24.968Z card-last-reviewed:: 2022-11-11T11:30:24.969Z card-last-score:: 5 collapsed:: true
        • Whenever an attribute of one entity type refers to another entity type, some relationship exists.
        • The degree of a relationship type is ^^the number of participating entity types.^^
        • Relationship types may have certain constraints.
      • What is the Cardinality Ratio? #card collapsed:: true card-last-interval:: 2.8 card-repeats:: 2 card-ease-factor:: 2.6 card-next-schedule:: 2022-11-20T15:15:43.390Z card-last-reviewed:: 2022-11-17T20:15:43.391Z card-last-score:: 5
        • The cardinality ratio specifies ^^the number of relationship instances that an entity can participate in.^^
        • The possible cardinality ratios for binary relationship types are:
          • 1:1, "one to one" - at most one instance of entity A is associated with one instance of entity B.
          • 1:N, "one to many" - for one instance of entity A, there are 0 or more instances of entity B.
          • M:N, "many to many" - for one instance of entity A, there are 0 or more instances of entity B, and for one instance of entity B, there are 0 or more instances of entity A.
      • Structural Constraints on Relationships

        • Often, we may know the min & max of the cardinalities.
          • Example: limit on the number of books that can be borrowed from a library.
        • What are Structural Constraints? #card card-last-interval:: 4 card-repeats:: 2 card-ease-factor:: 2.22 card-next-schedule:: 2022-11-25T13:06:19.301Z card-last-reviewed:: 2022-11-21T13:06:19.301Z card-last-score:: 3
          • Structural constraints specify a pair of integer numbers (min, max) for each entity participating in a relationship.
          • Examples: (0, 1), (1, 1), (1, N)., (1, 7).
    • Attributes

      collapsed:: true
      • What are Attributes? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.6 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T20:19:08.122Z card-last-score:: 1 collapsed:: true
        • Attributes are ^^named property^^ or characteristic of an entity.
        • Each entity has a set of attributes associated with it.
        • Several types of attributes exist:
          • Key.
          • Composite.
          • Derived.
          • Multi-valued.
        • Notation:

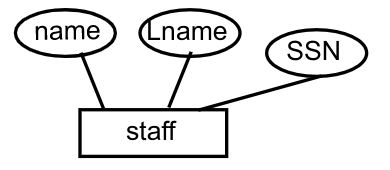

          • Chen: An oval enclosing the name of the attribute.
            • image.png
          • Crow: Listed in the entity box.
            • image.png
      • What are key attributes? #card card-last-interval:: 5.52 card-repeats:: 3 card-ease-factor:: 2.46 card-next-schedule:: 2022-11-20T04:37:24.678Z card-last-reviewed:: 2022-11-14T16:37:24.678Z card-last-score:: 3 collapsed:: true
        • Each entity type must have an attribute or set of attributes that ^^uniquely identifies^^ each instance from other instances of the same type.
        • A candidate key is an attribute (or combination of attributes) that uniquely identifies each instance of an entity type.
        • A primary key (PK) is a candidate key that has been selected as the identifier for an entity type.

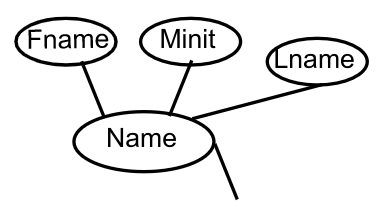

      • What is a composite attribute? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.46 card-next-schedule:: 2022-11-15T00:00:00.000Z card-last-reviewed:: 2022-11-14T16:46:49.892Z card-last-score:: 1 collapsed:: true
        • A composite attribute is an attribute that is composed of several atomic (simple) attributes.
        • If the composite attribute is referenced as a whole only, then there is no need to subdivide it into component attributes, otherwise you should divide it:
          • image.png
      • What is a derived attribute? #card card-last-interval:: 31.05 card-repeats:: 4 card-ease-factor:: 2.56 card-next-schedule:: 2022-12-15T21:12:18.376Z card-last-reviewed:: 2022-11-14T20:12:18.376Z card-last-score:: 5 collapsed:: true
        • A derived attribute is an attribute whose values can be determined from another attribute.
        • For Chen's notation, the notation is a dotted oval.
          • image.png
        • For Crow's Foot notation, derived attributes can be represented by enclosing the attribute in [square brackets], e.g., [age].
      • What is a multi-valued attribute? #card collapsed:: true card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.36 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T20:18:04.379Z card-last-score:: 1
        • A multi-valued attribute is an attribute which has lower & upper bounds on the number of values for an individual entry.
        • For Chen's notation, multi-valued attributes can be represented by one oval inside another.
          • image.png
        • For Crow's Foot notation, multi-valued attributes can be represented by enclosing the attribute in {curly brackets}.
          • E.g., {skills}.
  • Total & Partial Participation

    collapsed:: true
    • What is Total Participation? #card card-last-interval:: 4 card-repeats:: 2 card-ease-factor:: 2.22 card-next-schedule:: 2022-11-18T20:26:04.052Z card-last-reviewed:: 2022-11-14T20:26:04.052Z card-last-score:: 3
      • Total Participation (Mandatory Participation): ==All instances of an entity must participate in the relationship==, i.e., every entity instance in one set must be related to an entity instance in the second via the relationship.
        • For example, the entity "Student" must have total participation in the relationship "enrolled" with the entity "Course" - each student must be enrolled in a course.
    • What is Partial Participation? #card card-last-interval:: 7.45 card-repeats:: 3 card-ease-factor:: 2.46 card-next-schedule:: 2022-11-22T02:28:50.125Z card-last-reviewed:: 2022-11-14T16:28:50.125Z card-last-score:: 3
      • Partial Participation (Optional Participation): Some subset of instances of an entity will participate in the relationship, but not all, i.e., some entity instances in one set are related to an entity instance in the second via the relationship.
        • For example, the entity "Course" would have a partial participation in the relationship "enrolled" with the entity "Student" - a course might not have any students enrolled in it.
    • Chen's Notation for Participation #card

      card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.22 card-next-schedule:: 2022-11-23T00:00:00.000Z card-last-reviewed:: 2022-11-22T13:38:31.943Z card-last-score:: 1
      • In both total & partial participation, the line(s) are drawn from the participating entity to the relationship (the diamond) to indicate the participation of that instance from that entity in the relationship,
      • Total Participation: Double parallel lines.
        • image.png
      • Partial Participation: Single line.
        • image.png

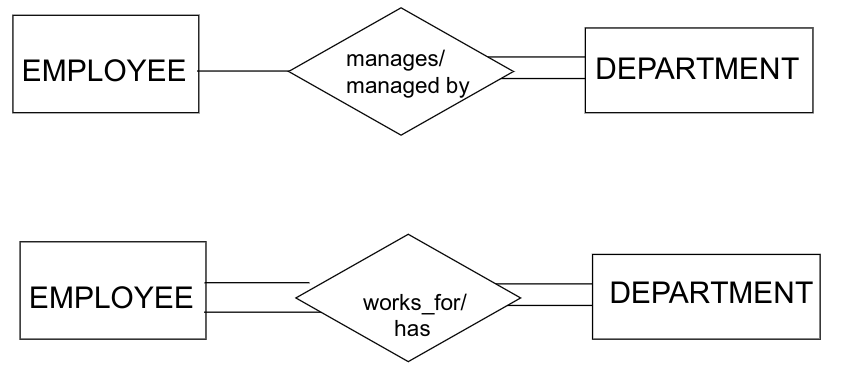

      • Examples:
        • image.png

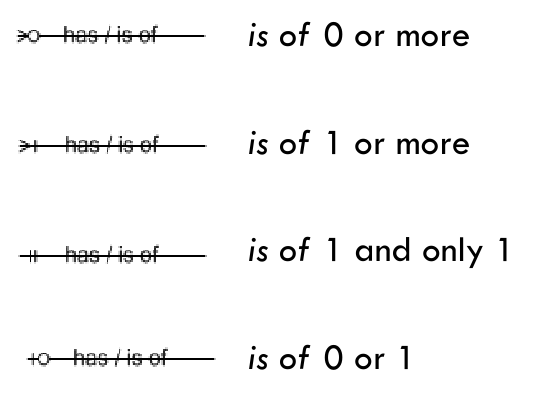

    • Crow's Foot Notation for Participation #card

      card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T20:19:01.789Z card-last-score:: 1 collapsed:: true
      • Use the idea of Ordinality / Optionality.
        • Optionality of 0: If an entity A has partial participation in a relationship to entity B, then A is associated with 0 or more instances of entity B, so the optionality sign goes beside B.
          • The optionality sign for an Optionality of 0 is a bar: |
        • Optionality of 1: If an entity A has full participation in a relationship to entity B, then A is associated with at least 1 or more of B, so the optionality sign goes beside B.
          • The optionality sign for an Optionality of 1 is a circle or "o": \bigcirc
        • [And vice-versa.]
      • In Crow's Foot notation, there is no diamond, so there is always a direct relationship line between the entities.
        • The optionality sign is drawn on this line.
        • The optionality drawn beside some entity A refers to how an instance of entity B is related to entity A.
          • That is, whether B can be involved partially (0) or not (1).
      • Example in Right to Left Relationships:
        • image.png
    • Note on Weak Entities

      • Note: ^^A weak entity type always has a total participation constraint.^^
        • We need to show the "identifying relationship".
        • image.png

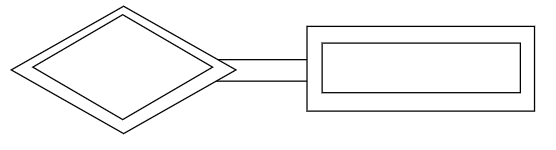

      • Chen's Notation for Weak Entities #card

        card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-19T00:00:00.000Z card-last-reviewed:: 2022-11-18T18:34:03.316Z card-last-score:: 1 collapsed:: true
        • Entity: Double rectangle.
        • Relationship: Double diamond.
        • The weak entity has full participation in the relationship.
        • image.png

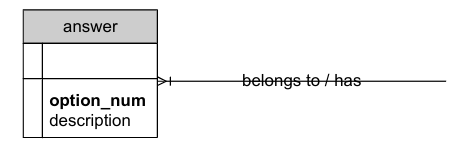

      • Crow's Foot Notation for Weak Entities #card

        card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T19:36:10.883Z card-last-score:: 1 collapsed:: true
        • In Crow's Foot Notation, we can represent the weak entity as a normal entity, but do not choose any attributes as the primary key.
        • For an attribute that partially determines the entity instances, we choose the "required" option.
        • We usually represent the relationship between entities using a solid line.
          • This indicates that it is an "identifying" relationship.
          • image.png
    • In general, with entities, there may be two valid solutions, one with a weak entity, and one without.
      • There is not a huge difficulty if you do not identify weak entities in a solution so long as all the entities have primary attributes.
        • It may be slightly non-optimal in terms of introducing an additional primary key that is not needed, but this is not a huge problem for us at this level.
  • Entities or Multi-Valued Attributes?

    collapsed:: true
    • Sometimes, it may not be clear whether something should be modelled as a multi-valued attribute or an entity.
      • Both may be equally correct, as long as you represent all the information that you are asked to.
      • You may see (very little) difference between the two approaches if you map either approach to tables in a database.
  • Steps to Create an ER Model

      1. Identify entities.
      2. Identify relationships between entities.
      3. Draw entities & relationships.
      4. Add attributes to entities (& relationships, if appropriate).
      5. Add cardinalities to relationships.
      6. Add participation constraints (total or partial) to relationships.
      7. Check that all entities have primary keys identified.
  • Mapping ER Models to Tables in the Relational Model

    • Once you have you ER diagram, you now need to convert it into a set of tables so that you can implement it in a relational mode.
      • Example: As MySQL tables using CREATE TABLES commands.
    • This stage is called Mapping ER Models to Tables in the Relational Model, and it specifies a set of rules that must be followed in a certain order.
    • The rules specified here are based on Chen's Notation.
    • Steps

      • [1] For each entity, create a table R that includes all the simple attributes of the entity.
      • [2] For strong entities, choose a key attribute as the primary key of the table.
      • [3] For weak entities R, include the primary key attributes of the table that corresponds to the owner as foreign key attributes of R.
        • The primary key of R is a combination of the primary key of the owner and the partial key of the weak entity type.
        • The relationship of the weak & strong entity is generally taken care of by this step.
      • [4] For each binary 1:1 relationship, identify entites S & T that participate in the relation.
        • If applicable, choose the entity that has total participation in the relation.
          • Include the primary key of the other relation as the foreign key in this table.
          • Include any attributes of the relationship as attributes of the chosen table.
        • If both entities have total participation in the relationship, you can choose either one for the foreign key and proceed as above, or you can map two entities & their associated attributes & relationship attributes into one table.
      • [5] For each binary 1:N relationship, identify the table S that represents the N side and the table T that represents the 1 side.
        • Include the primary key of table T as a foreign key in S such that each entity on the N side is related to at most one entity instance on the 1 side.
          • Include any attributes of the relationship as attributes of S.
        • For recursive 1:N relationships, choose the primary key of the table and include it as a foreign key in the same table with a different name.
      • [6] For each M:N relationship, create a new table S to represent the relationship.
        • Include the primary keys of the tables that represent the participating entity types as foreign keys in S - their combination will form the primary key of S.
          • Also include in S any attributes of the relationship.
        • For a recursive M:N relationship, both foreign keys come from the same table (give different names to each) and become the new primary key.
      • [7] For each multi-valued attribute A of an entity S, create a new table R.
        • R will include:
          • An attribute corresponding to A.
          • The primary key of S, which will be a foreign key in R. Call this K.
          • The primary key of R is a combination of A & K.
