• #CT230 - Database Systems I
• Previous Topic: Query Processing & Optimisation
• Next Topic:
• Relevant Slides:
• Generally, we can assume that for a non-trivial relational database that the entire database will not fit in the main memory (RAM).
• Note: Newer database system architectures, in-memory databases (such as SAP Hanna), manage their data through virtual memory, relying on the OS to manage the movement of data to & from the main memory through the OS paging mechanism.
• One of the DBMS's tasks is to manage the physical organisation (storage & retrieval) of the tuples (rows) in each table in the database.
  • This is called File Organisation.
• What is File Organisation? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-16T00:00:00.000Z card-last-reviewed:: 2022-11-15T18:42:32.857Z card-last-score:: 1
  • A database file organisation is the way in which tuples from a table are physically arranged in secondary storage to facilitate the storage of data and read/write requests by users (via queries).
  • A number of factors to consider, including:
    • Support of fast access of data - moving to/from secondary storage.
    • Cost.
    • Efficient use of secondary storage space.
    • Provision for table growth (when new tuples are added).
• What is a file? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-16T00:00:00.000Z card-last-reviewed:: 2022-11-15T18:42:28.412Z card-last-score:: 1
  • A file is a collection of data stored in bulk.
  • In DBMS, we have referred to these files as tables or relations.
  • In DBMS, we know that such tables contain a sequence of tuples, where each tuple contains a sequence of bytes and is subdivided into attributes or fields. Each attribute contains a specific piece of information. Associated with each attribute is a data type.
  • In File Systems, we refer to these tuples as records containing fields.

• Records

  • Each recorder often begins with a header - a fixed-length region that stores information about the record such as:
    • Pointer to the database schema.
    • Length of the record.
    • Timestamp indicating the time the record was last modified or read.
    • Pointers to the fields of the record.

  • Size of records/tuples

    • Fixed Length: All records (tuples) in a file (table) exactly the same size.
    • Variable Length: Different records (tuples) in a file (table) have different size.

• File Organisation Issues

  • How can these records be organised to store in a compact manner on devices of limited capacity and provide convenient & quick access by programs?

• Blocks

  • Different terminology is used but generally speaking a Block = a Frame = a Page, where records from a file are assigned to Blocks/Pages/Frames.
    • Relational DBMS use the terminology of a block.
    • Therefore, a table can also be defined as a collection of blocks where each block contains a collection of records.
  • What is a block? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-17T00:00:00.000Z card-last-reviewed:: 2022-11-16T21:17:50.239Z card-last-score:: 1
    • A block is the unit of data transfer between secondary storage & memory.
    • The block size B is fixed.
    • Records of a file must be allocated to blocks.
      • Typically, the block size is larger than the record size, so each block will contain a number of records.
      • Some files may have very large records that cannot fit in one block, so they span recrods over a number of blocks.
    • A number of blocks is typically associated with a table.
  • Blocks also have a header that holds information about the block such as:
    • Links to one or more blocks associated with the table.
    • Which table (in the schema) the blocks belong to.
    • Timestamp of last access to block (read or write).
  • What is the Blocking Factor? #card card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T09:46:11.528Z card-last-score:: 1
    • The Blocking Factor is the average number of records that fit per block.
    • Given a block size B (in bytes) and record size R (in bytes), then with B \geq R, we can fit \text{floor} \left( \frac{B}{R} \right) records per block.
    • We must ensure that the header information is also accounted for.

    • Example

      • With unspanned memory organisation and B = 1024 \text{ Bytes} (once header information is stored) and R = 100 \text{ Bytes (and of fixed length)}, the blocking factor is \text{floor} \left( \frac{1024}{100} \right) = 10.

  • Spanned vs Unspanned Organisations

    • In Spanned Organisation, records can span more than one block.
    • In Unspanned Organisation, records are not allowed to cross block boundaries.
      • So can only use when B \geq R (i.e., when block size is greater than record size).

  • Why use blocking?

    • Say we need to retrieve a file with 1000 records.
      • If not blocked, then we would need 1000 data transfers.
      • If blocked with a blocking factor of 10, and records are stored one after another in blocks, then the same operation requires 100 data transfers.

• Operations Performed on a File

  • All the operations that we have been performing with SQL code can be performed on a file:
    • Scan or fetch all records.
    • Search records that satisfy an equality condition (i.e., find specific records).
    • Search records where a value in the record is within a certain range.
    • Insert records.
    • Delete records.

• Steps to Search for a Records on a Disk #card

  card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T09:45:33.206Z card-last-score:: 1
  • 1. Locate the relevant blocks.
    2. Move these blocks to main memory buffers.
    3. Search through block(s) looking for the required records.
    4. At worst (the worst case), we may have to retrieve and check through all the blocks for the record.
  • Generally, when accessing records, to support record-level operations we must:
    • Keep track of the blocks associated with a file.
    • Keep track of the free space on the blocks.
    • Keep track of the records on a block.

• Options for Organising Records

  • Heap file organisation (unordered).
  • Sequential file organisation (ordered).
  • Hashing/hashed file organisation.
  • Indexed file organisation (Primary, Clustered, B-Trees, B+ Trees).

  • Heap File Organisation #card

    card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T09:46:39.719Z card-last-score:: 1
    • Approach: Any record can be placed in any block where there is space for the record (no ordering of records).
    • Insertion: The last disk block associated with the file (table) is copied into the buffer and the record is added; the block copied back to disk.
    • Searching: Must search all blocks (linear search).
    • Deletion: Find the block with the record (linear search); delete the link to the record.

    • Advantages

      • Insertion is efficient & easy - the last disk block is copied into the buffer and the record is added; the block is copied back to the disk.

    • Disadvantages

      • Searching is inefficient - must search all blocks (linear search).
      • Deleting is inefficient - search first; delete and then leave unused space in the block if using the "easy" insert approach.

  • Sequential File Organisation #card

    card-last-interval:: 0.98 card-repeats:: 1 card-ease-factor:: 2.36 card-next-schedule:: 2022-11-18T08:45:18.181Z card-last-reviewed:: 2022-11-17T09:45:18.183Z card-last-score:: 3
    • Approach: Records are stored in sequential order, based on the value of some key of each record - often the primary key.
    • We usually use an index with sequential file organisation.
    • Sequential File Organisation allows records to be read in sorted order.

    • Advantages

      • Reading records in order is efficient.
      • Searching is efficient on the key field (binary search).
      • Easy to find the "next record".

    • Disadvantages

      • Insertion & deletion is expensive as records must remain physically ordered.
        • Pointer chains are used (part of the header information).
      • Searching is inefficient on a non-key field.

  • Hashing / Hashed File Organisation #card

    card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-17T00:00:00.000Z card-last-reviewed:: 2022-11-16T21:17:57.726Z card-last-score:: 1

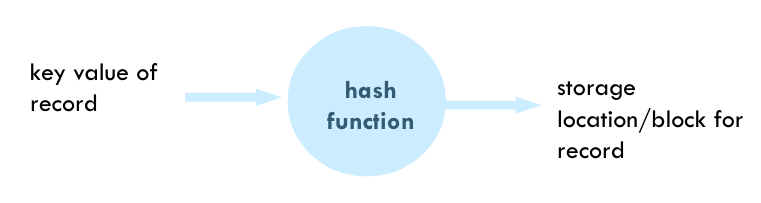

    • A hash function is computed on some attributes of each record (often a key value).
    • The output of the hash function is the block address where the record should be placed.
    •

    • Hash Functions

      • A common hash function is the MOD or modulus function where a MOD b or a % b returns the remainder on dividing a by b, i.e. integer division.

    • Criteria for Choosing the Hash Function

      • Should be easy & quick to compute.
      • Should uniformly distribute hash addresses across the available space.
        • Picking a prime number for the mod function helps with this, but cannot guarantee it.
      • Should anticipate file growth (insertions & deletions) so that only a fraction of each block is initially filled, thus leaving room to insert new records.

    • Collisions

      • However, at any stage, two or more key field values can hash to the same location.
        • If there is no room to place a record, this is called a collision.
      • If a collision occurs, and there is no space in the block for a new record, then the record must find a new location.
        • This is called collision resolution.
      • One approach to collision resolution is Linear Probing.
        • Hash function returns block location i for the record.
        • If there is no room in block i, check block i+1, i+2, etc. until a block with room is found.

  • Indexed File Organisation #card

    card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T09:46:30.122Z card-last-score:: 1
    • Indexing speeds up operations that are not efficiently supported by the basic file organisation.
    • Consists of index entries.
    • Each index entry consists of:
      • Index key.
      • Record or block pointer.
    • The index entries are placed on the disk, either in sequential sorted order (ordered indices) or hashed order.
    • A complete index may be able to reside in main memory.

    • To Access a Record Using Indexing Key

      • 1. Retrieve the index file.
        2. Search through it for the required field (based on the index key value).
        3. Answer the query or return to secondary storage for the block which contains the required record.

    • Dense vs Sparse Indices #card

      card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-17T00:00:00.000Z card-last-reviewed:: 2022-11-16T21:17:44.546Z card-last-score:: 1
      • An index is dense if it contains an entry for every record in the file.
        • A dense index may be created for any index key.
      • A sparse (or non-dense) index contains an entry for each block rather than an entry for every record in the file.
        • Sparse indices can only be used if the records are assigned to blocks in sorted (sequential) order based on the primary index key.
        • A sparse index is called a primary index.

    • More on Primary Indices

      • The total number of entries in a primary index is the same as the total number of blocks in the ordered file.
      • The first record in each block is called the anchor record of the block.

      • Advantages

        • Fewer index entries than records, so the index file is smaller.

      • Disadvantages

        • Insertions & deletions are a problem - may have to change anchor record.
        • Searching may take longer.

    • Clustered & Secondary Indices #card

      card-last-interval:: -1 card-repeats:: 1 card-ease-factor:: 2.5 card-next-schedule:: 2022-11-18T00:00:00.000Z card-last-reviewed:: 2022-11-17T09:46:03.592Z card-last-score:: 1
      • Records that are logically related are physically stored close together on the disk (i.e., in the same blocks or consecutive blocks).
      • Records are physically ordered on a non-key field that does not have a distinct value for each record.
      • The clustering index consists of:
        • A clustering field value.
        • A block pointer to the first block that has a record with that value for the clustering field.
